Multi - Function Geotechnical And Portable Rotary Drilling Rig 100m

Model Number : GY-100

Place of Origin : CHANGSHA HUNAN

Brand Name : CHANGTAN

Certification : SGS/CE/ISO9001

MOQ : 1 SET

Price : 3600USD-8000USD

Packaging Details : Exported wooden box

Delivery Time : 7-10 working days

Payment Terms : T/T L/C

Supply Ability : 100 SETS/MONTH

drilling depth : 100m

drilling diameter : 130mm

Power : diesel / electric motor

Brand : Changtan

Type : portable rotary drilling rig

Contact Now

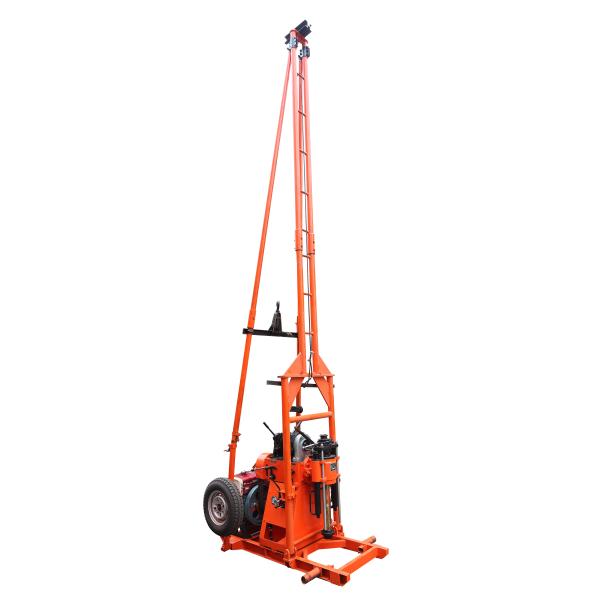

GY-100 PORTABLE DRILLING RIG

  • Multiple revolving speed grades with large torque meets different project need.
  • 2-wheels trailer, portable, easy to move by towing the trailer.
  • Rotary drilling and cable percussion drilling.
  • Small, light with large drilling capacity, easy to be dismantled and assembled.
DRILLING CAPACITY Depth 135m / 42
SWIVEL HEAD
Type Twin cylinder, Oil-hydraulic feed system,
Feeding Stroke 400mm
Revolving Speed of Spindle 48 100 200 350 650 r.p.m
Max. Spindle Torque 2000N*m
Max. Thrust Capacity 20 kN
Max. Balance Capacity 30 kN
AVAILABLE RODS 42mm, 50mm, AW, BW
HOIST DRUM
Type Planetary grear, hand brake type
Hoisting Capacity 18 kN at single pull line
Rope Speed 0.32 0.66 1.24 2.58 m/s at single pull time
Drum Capacity Φ11mm × 24m
OIL - HYDRAULIC
Type Constant delivery, gear type pump
Delivery Capacity 33L/min @ 1650 r.p.m
Max. Pressure 25MPa
POWER Diesel engine ZS1100, 12.1KW at 2200 r.p.m
Or electronic Motor, 11KW at 1460 r.p.m
NET WEIGHT 450kgs (without power)
DIMENSION(L×W×H) 1580 × 1080 ×1200mm
